Architectural drawings are the foundation of any construction project. Understanding these drawings is essential for architects, engineers, builders, and even clients to ensure the project is executed as envisioned. These drawings are more than just lines on paper; they are a comprehensive representation of a building's design, providing a visual guide that details everything from the structure's foundation to its finishing touches. Reading and interpreting architectural drawings is a skill that involves understanding different types of drawings, recognizing symbols, scales, and notations, and visualizing a three-dimensional structure from two-dimensional representations.
Table of Contents
1. What Are Architectural Drawings?
Architectural drawings are technical representations of a building design. They are created by architects and designers to convey the details of a project to builders, engineers, and clients. These drawings are crucial for communicating the design intent, materials, dimensions, and construction methods. Architectural drawings can be divided into several types, each serving a specific purpose:
1.1 Types of Architectural Drawings
Floor Plans: These are top-down views of each level of a building, showing walls, windows, doors, and fixtures. Floor plans help in understanding the layout of spaces within a structure.
Elevations: These are side views of a building's exterior. Elevations provide information on the height, materials, and architectural style.
Sections: Sections are vertical cuts through a building, illustrating the relationship between different floors and the heights of various elements.
Details: Detail drawings focus on specific components, such as windows, doors, and staircases, showing how these elements are constructed and assembled.
Site Plans: Site plans show the entire building footprint, landscaping, and surrounding context, including neighboring structures, roads, and utilities.
Reflected Ceiling Plans (RCPs): RCPs show the layout of the ceiling, including lighting, HVAC elements, and other overhead features.
1.2 The Importance of Architectural Drawings
Understanding architectural drawings is critical for the successful completion of a building project. These drawings provide a roadmap for construction, ensuring that all parties involved understand the design and can execute it accurately. Architectural drawings also help identify potential issues early in the design process, reducing costly changes during construction.
2. Key Components of Architectural Drawings
Architectural drawings consist of several key components that are essential for accurately interpreting the design. Understanding these components is the first step in learning how to read architectural drawings.
2.1 Symbols and Notations
Symbols are used to represent various elements in architectural drawings, such as doors, windows, and fixtures. Notations provide additional information, such as dimensions, materials, and construction methods. Familiarity with these symbols and notations is crucial for interpreting the drawings correctly.
- Doors and Windows: Represented by different symbols depending on the type and direction of swing.
- Fixtures: Includes symbols for sinks, toilets, bathtubs, and other built-in elements.
- Electrical Outlets and Switches: Shown with standardized symbols to indicate their location and type.
- Furniture: Sometimes indicated to provide context for room sizes and layouts.
2.2 Scales and Dimensions
Architectural drawings are often drawn to scale, meaning that a specific measurement on the drawing corresponds to a measurement in the real world. Common scales include 1/4" = 1'-0" for floor plans and 1/2" = 1'-0" for details. Understanding the scale is crucial for interpreting the dimensions accurately.
- Linear Dimensions: Indicate the length, width, and height of different elements.
- Radial Dimensions: Used for curved elements to show the radius or diameter.
- Elevation Marks: Indicate the height above a reference point, usually sea level.
2.3 Line Types and Weights
Different lines in architectural drawings have different meanings. Line weights (thicknesses) and types (solid, dashed, dotted) help distinguish between various elements and provide additional context.
- Solid Lines: Represent visible edges of objects.
- Dashed Lines: Indicate hidden elements or objects above the cut line in a floor plan.
- Thick Lines: Denote structural elements or important components.
- Thin Lines: Used for less critical details, such as cabinetry or furnishings.
3. How to Read Floor Plans
3.1 Understanding the Layout
A floor plan is a scaled diagram of a room or building viewed from above. Floor plans are essential for understanding the arrangement of spaces within a structure. When reading a floor plan:
- Start by identifying the orientation: Most floor plans include a north arrow to show the direction.
- Examine the walls and partitions: Different types of walls (e.g., load-bearing vs. partition walls) are usually represented by different line weights.
- Identify the rooms and their functions: Rooms are often labeled (e.g., "Living Room," "Kitchen"), but understanding the layout can also provide insight into their intended use.
3.2 Recognizing Doors and Windows
Doors and windows are key elements in any floor plan. Understanding their placement and type is essential for visualizing the flow and functionality of a space.
- Doors: Indicated by an arc that shows the direction of the swing.
- Windows: Represented by a break in the wall line and often include dimensions to indicate size.
3.3 Interpreting Furniture Layouts
Furniture is sometimes included in floor plans to provide context and show how a space might be used. Recognizing the placement of furniture can help in understanding the functionality of a room.
Also Read:
- The Importance of Scale and Proportion in Architecture
- Top 10 Must-Know Architectural Terms for Beginners
- The Evolution of Modern Architecture: Key Movements and Influences
- Understanding Architectural Styles: A Beginner's Guide to Key Concepts
4. How to Read Elevations and Sections
4.1 Elevations
Elevations provide a side view of a building, showing exterior finishes, heights, and relationships between different levels.
- Identify the elevation view: Commonly labeled as "North Elevation," "South Elevation," etc.
- Examine the materials and finishes: Different hatches or textures represent different materials (e.g., brick, stucco, glass).

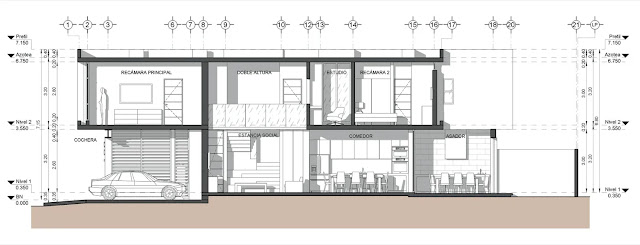

4.2 Sections
Sections are vertical cuts through a building, providing insight into the relationship between floors, ceiling heights, and structural elements.
- Identify the cut line: Sections are often marked on floor plans with a line indicating where the section is cut.
- Examine the structural elements: Look for beams, columns, and other structural components to understand how the building is supported.
5. Advanced Interpretation Techniques
5.1 Understanding Reflected Ceiling Plans (RCPs)
RCPs are important for understanding the layout of elements above the eye level, such as ceiling lights, fans, and HVAC equipment.
- Identify the elements shown: Look for symbols representing lights, diffusers, and other overhead elements.
- Examine the ceiling height changes: Dashed lines might indicate areas with different ceiling heights or soffits.
5.2 Interpreting Detail Drawings
Detail drawings provide a closer look at specific components or assemblies, such as window details, doorframes, or staircases.
- Identify the component: Look at the title or reference callout to determine what part of the building the detail is describing.
- Examine the construction method: Details often include notes or dimensions that explain how different materials come together.
6. Common Mistakes When Reading Architectural Drawings
6.1 Misinterpreting Scales and Dimensions
One of the most common mistakes when reading architectural drawings is misinterpreting the scale. Always check the scale on each drawing to ensure accurate measurements.
6.2 Overlooking Key Symbols and Notations
Symbols and notations are critical for understanding the details of a drawing. Overlooking these elements can lead to misunderstandings and construction errors.
6.3 Ignoring Elevation Changes
Elevation changes are essential for understanding the height differences within a structure. Ignoring these can lead to incorrect interpretations of the space.
7. Conclusion
Reading and interpreting architectural drawings is a fundamental skill for anyone involved in the construction process. By understanding the different types of drawings, symbols, scales, and dimensions, you can accurately interpret a design and ensure that it is executed correctly. Whether you are an architect, engineer, builder, or client, mastering the art of reading architectural drawings is essential for bringing a design to life.
FAQs
1. What are the different types of architectural drawings?
There are several types of architectural drawings, including floor plans, elevations, sections, details, site plans, and reflected ceiling plans (RCPs). Each type serves a specific purpose in conveying different aspects of the design.
2. Why is it important to understand scales in architectural drawings?
Scales are crucial because they determine the proportion of the drawing to the actual structure. Understanding scales ensures that measurements are interpreted accurately, which is essential for construction.
3. How can I learn to read architectural drawings more effectively?
To learn to read architectural drawings more effectively, familiarize yourself with common symbols, notations, scales, and line types. Practice by reviewing a variety of drawings and seeking guidance from experienced professionals or educational resources.
